Eclipse IDE

Adjust the compiler and linker command line patterns as described below.

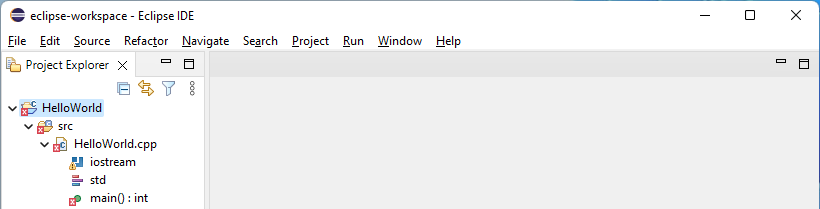

1. In the Project Explorer, select your project, which is a top level item.
2. Use the menu command Project Properties.
3. Select C/C++ Build: Settings
4. Select the Tool Settings tab
5. Select the C compiler, for example Cross GCC Compiler

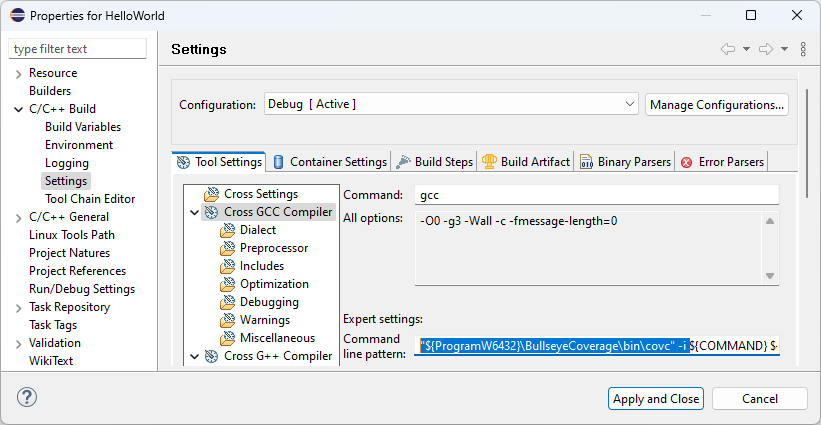

6. Change the Command line pattern setting to insert the text highlighted below at the beginning the compiler command.
```
"${ProgramW6432}\BullseyeCoverage\bin\covc" -i ${COMMAND} …
```
7. Repeat step 5 for the C++ compiler, for example Cross G++ Compiler
8. Repeat step 5 for the linker, for example Cross G++ Linker

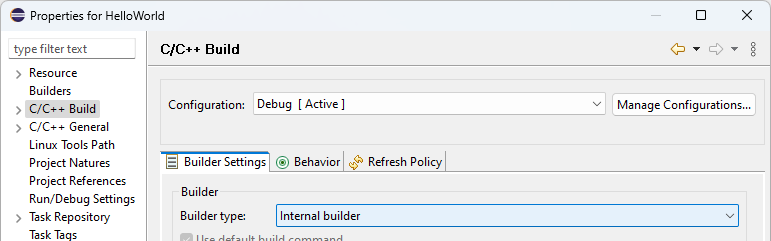

Set the builder type to internal as shown below. This change works around external builders improperly interpreting quotes and backslashes in the adjusted command line patterns.
Set the PATH and COVFILE environment variables within the IDE environment.

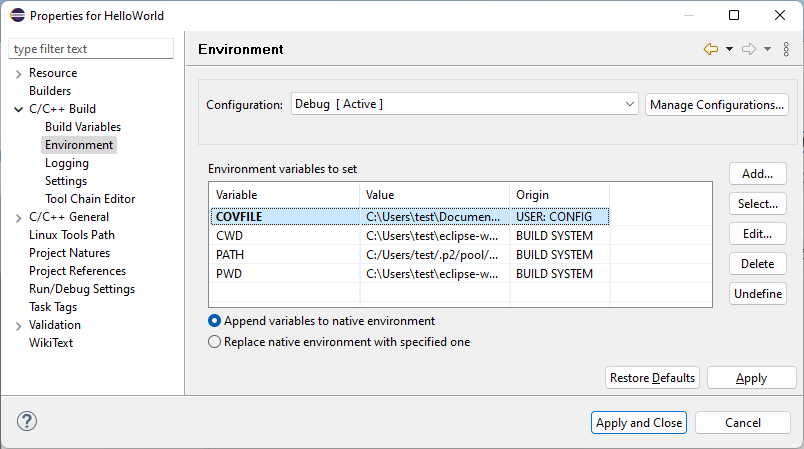

1. Select C/C++ Build: Environment
2. Press the Add button
3. Enter name COVFILE and value ${COVFILE}

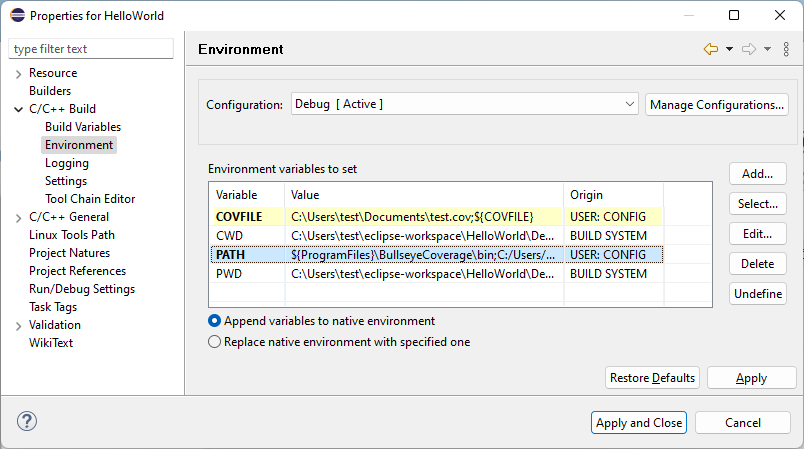

4. Select the PATH environment variable and press the Edit button
5. Insert the text ${ProgramW6432}\BullseyeCoverage\bin; at the front of the value

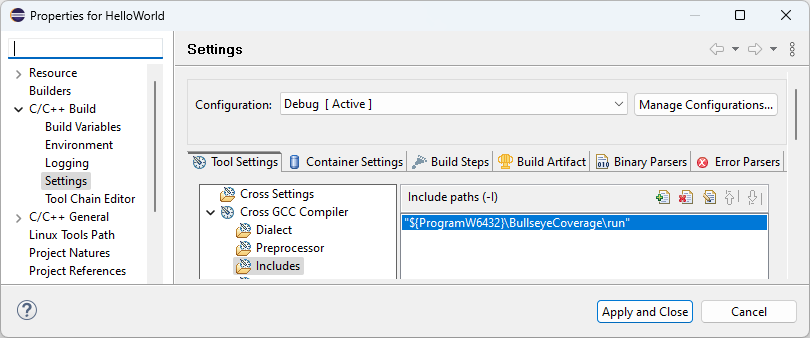

Add the include directory ${ProgramW6432}\BullseyeCoverage\run to the C and C++ compilers as shown below.

Updated: 22 Jan 2025
