Texas Instruments Code Composer Studio

This information applies to Code Composer Studio 6 and later.

Configure Project

Follow these steps to configure your project.

  1. Use the IDE menu command Project Properties.
  2. Expand Build.
  3. Select the compiler, for example ARM Compiler.
  4. Modify the Command setting to insert covc -i at the beginning.
  5. Select the linker, for example ARM Linker.
  6. Repeat step 4.
  7. Press the OK or Apply and Close button

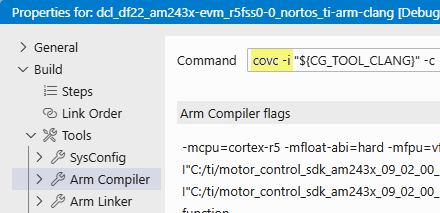

Project Properties

Build Project

Enable coverage build and then rebuild your project using the IDE menu command Project Rebuild Active Project.

Run-Time Library Built Automatically

By default, BullseyeCoverage automatically compiles and adds the run-time library run/libcov-ti.c to compiler invocations that link an executable. This source implements the small footprint configuration. You can override this behavior by including in your link command your own run-time library named with the prefix libcov-, for example libcov-userDefined.a.

The covc option --lib cannot be used with the TI compiler.

Saving Coverage

Add a call to cov_dumpData into your program. When using the Code Composer Studio simulator, the data file appears in the configuration directory, for example Debug\BullseyeCoverage.data-1.

#if _BullseyeCoverage
    cov_dumpData();
#endif

Run Under Debugger

The BullseyeCoverage run-time source file for TI Code Composer, BullseyeCoverage/run/libcov-ti.c, calls the low level POSIX-style functions provided in the TI Code Composer run-time. When running under the debugger, these operations are performed according to the host's operating system.

BullseyeCoverage run-time error messages are written to standard error. After starting the debugger, use the command View Console so that you can see any error messages that might occur.
